Sketches of the device.

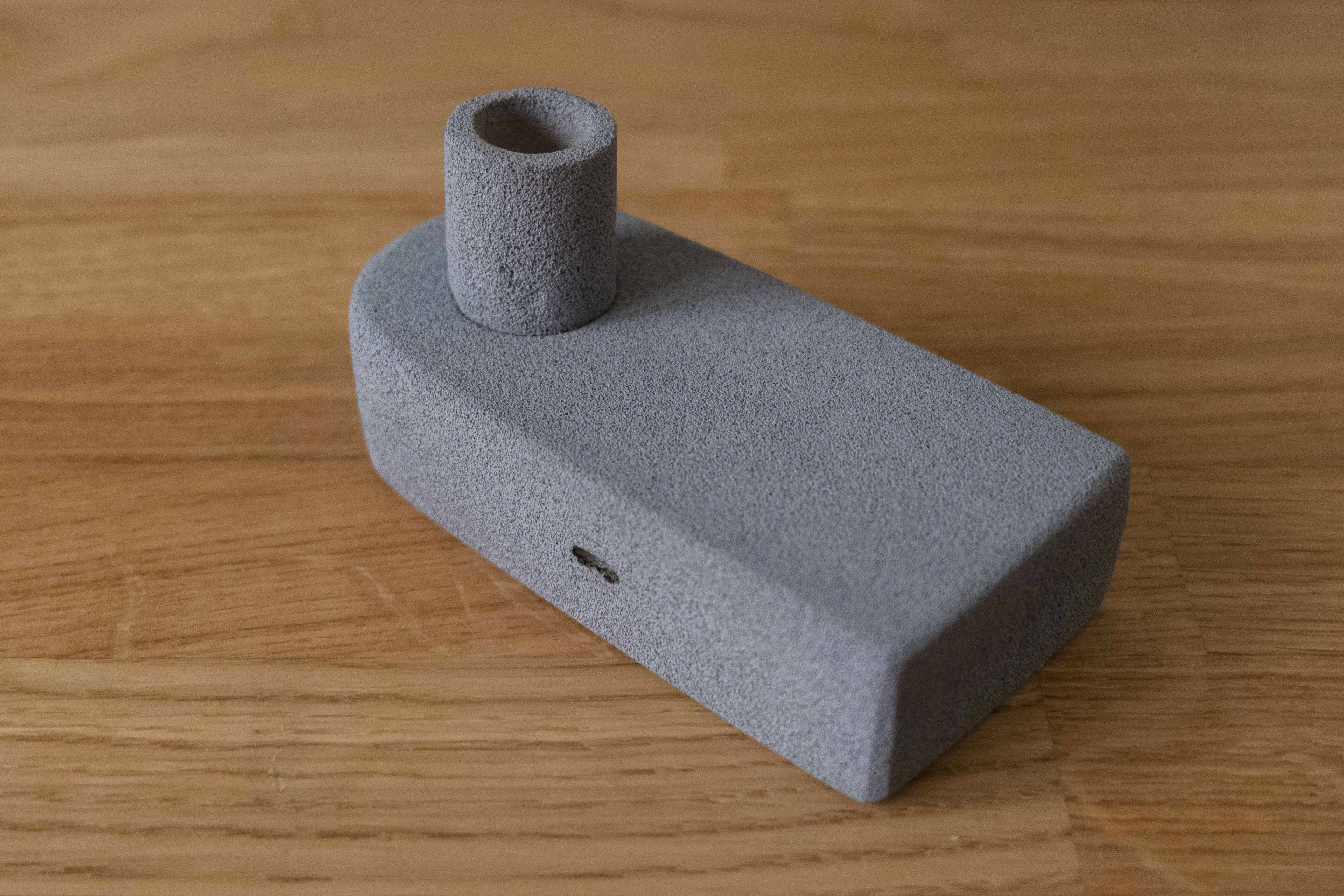

Initial prototype out of foam to explore the shape and ergonomics.

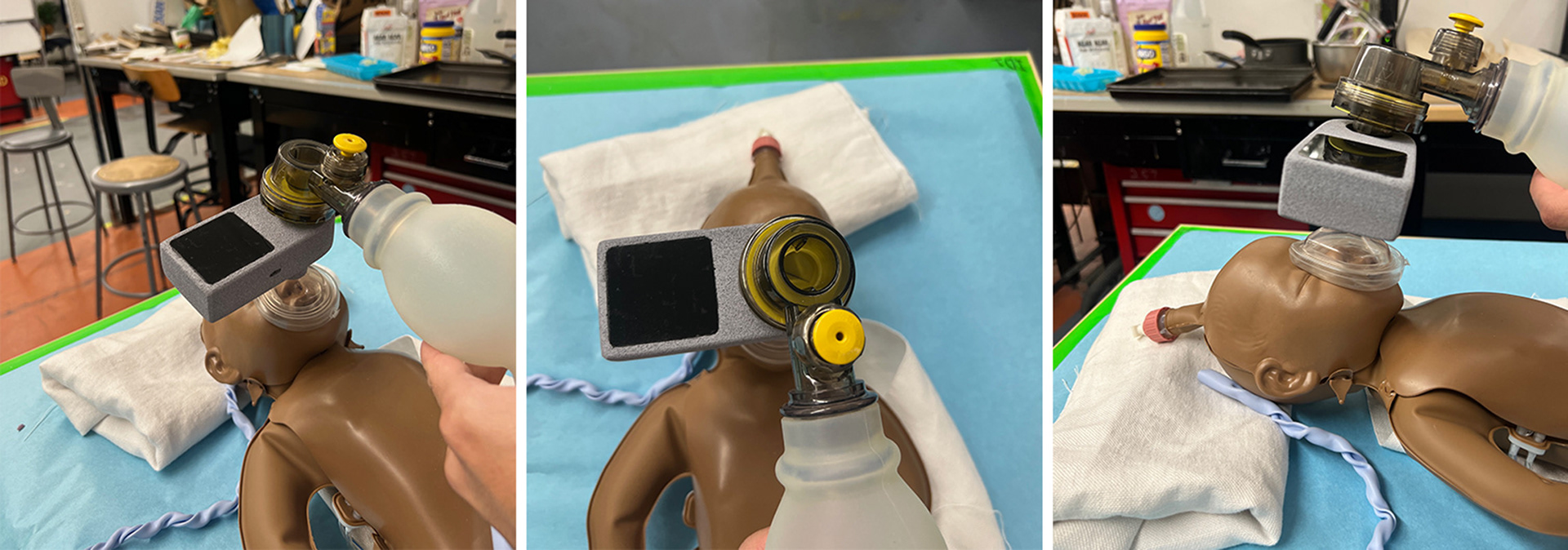

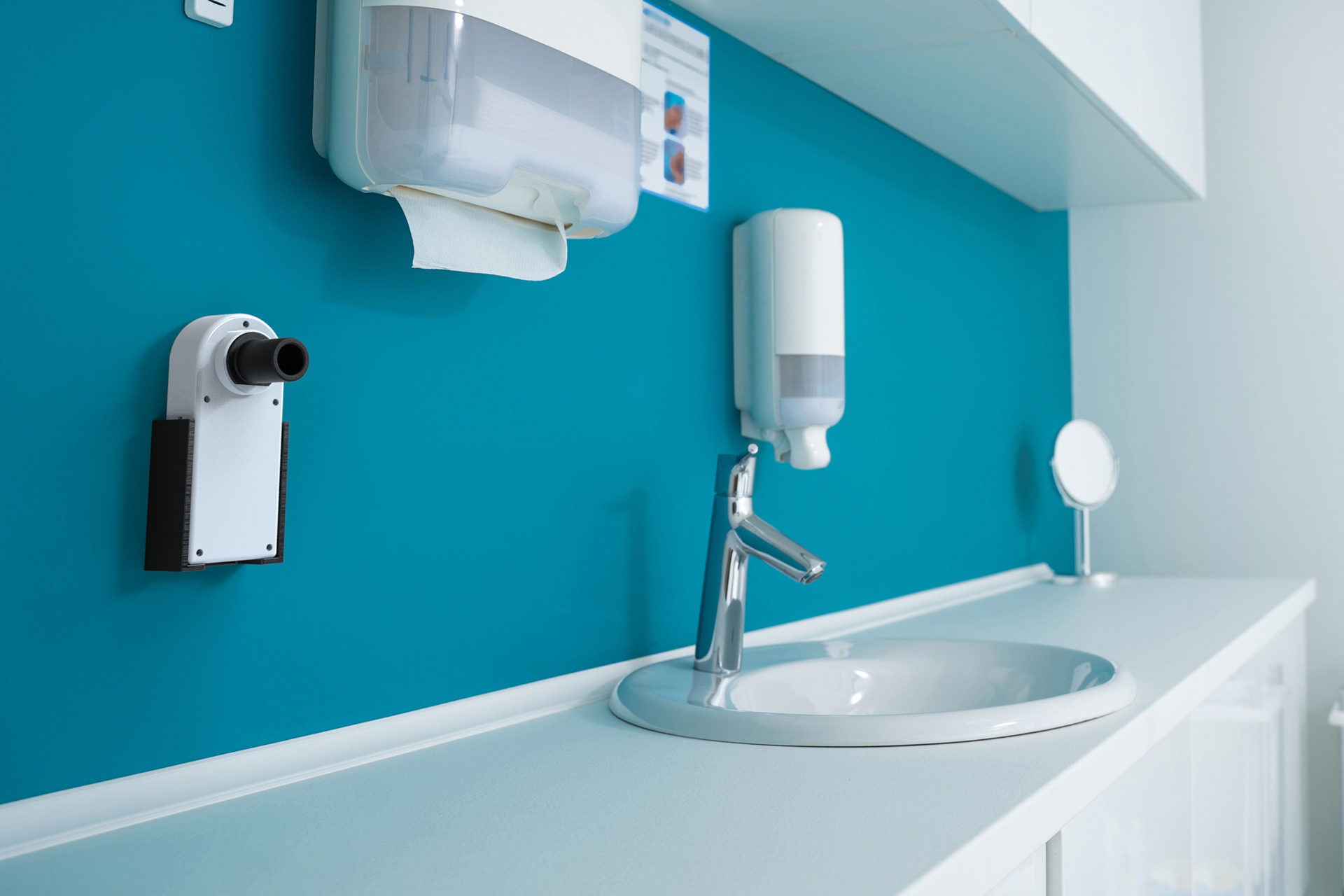

Foam prototype in a demonstration of how the product will be utilized in a hospital environment.
Renders showcasing the hardware of the device.
Renders of the device showcasing the display and context. The display uses three LED's to signify successful operation of the device. Yellow LED indicates to an ideal rate of oxygen flow coming from the self-inflating bag. Red LED indicates to a proper seal between the infant and the mask, and blue LED indicates to a proper posture of the infant and that the lungs are receiving the oxygen. Green LED shows the battery status.

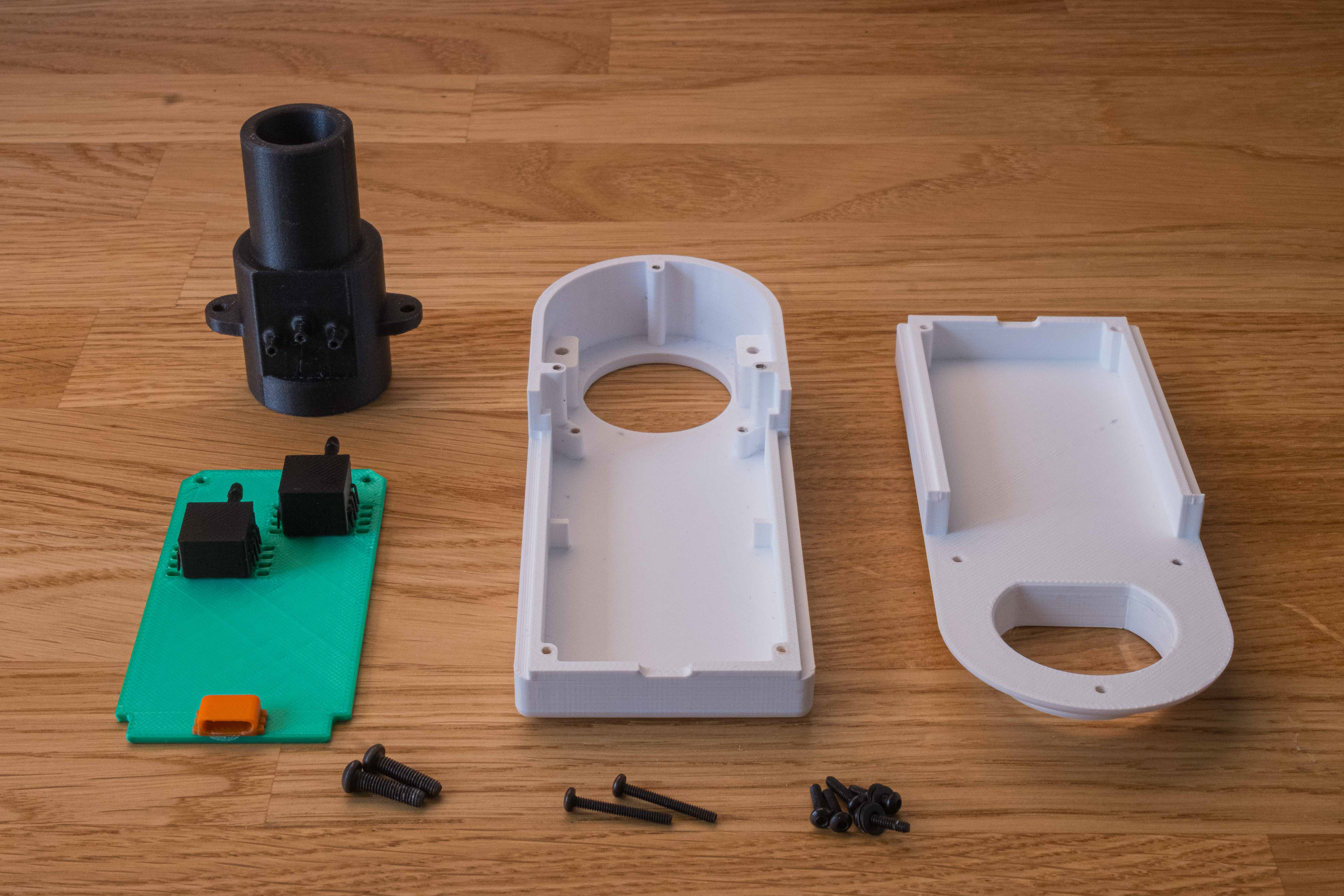

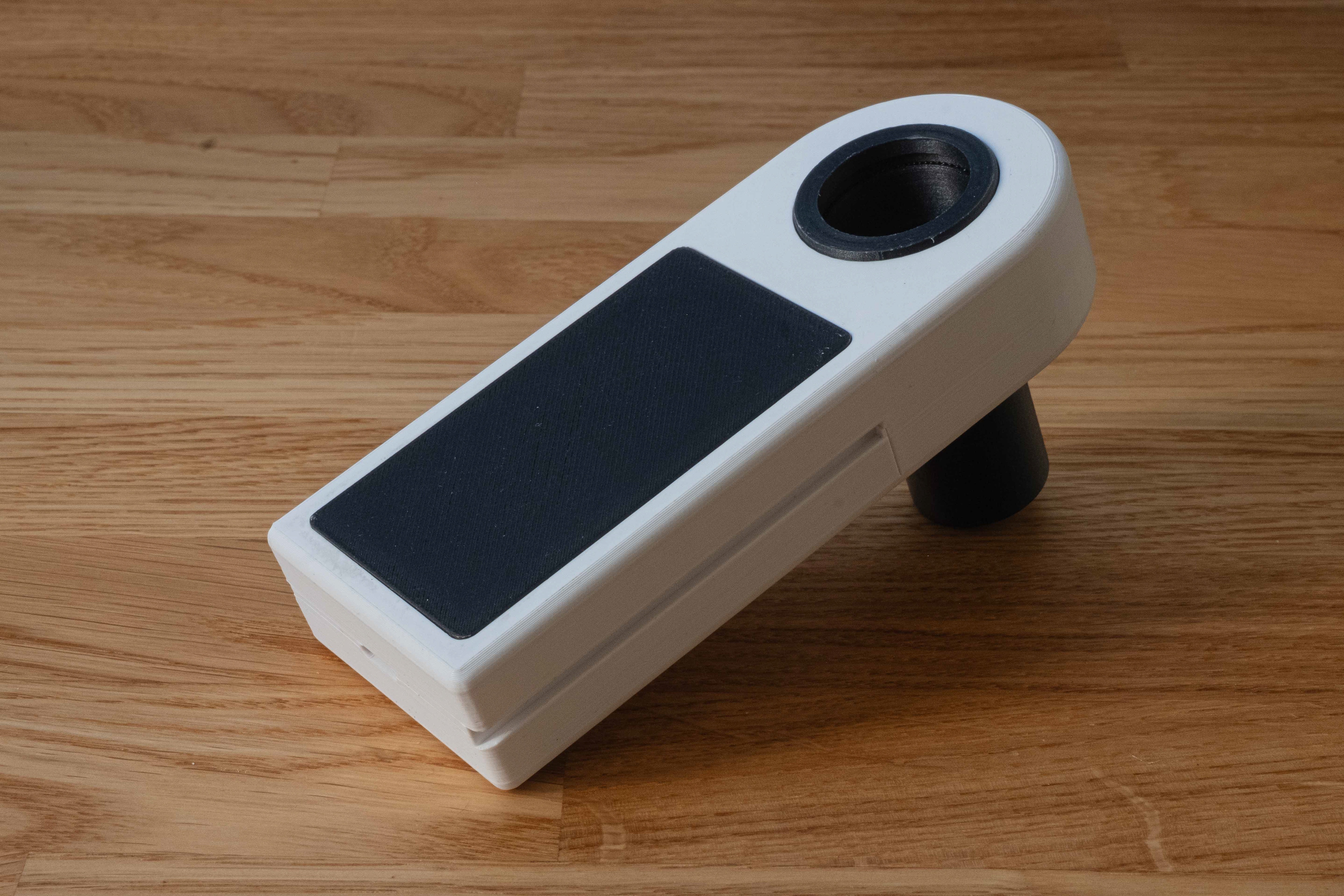

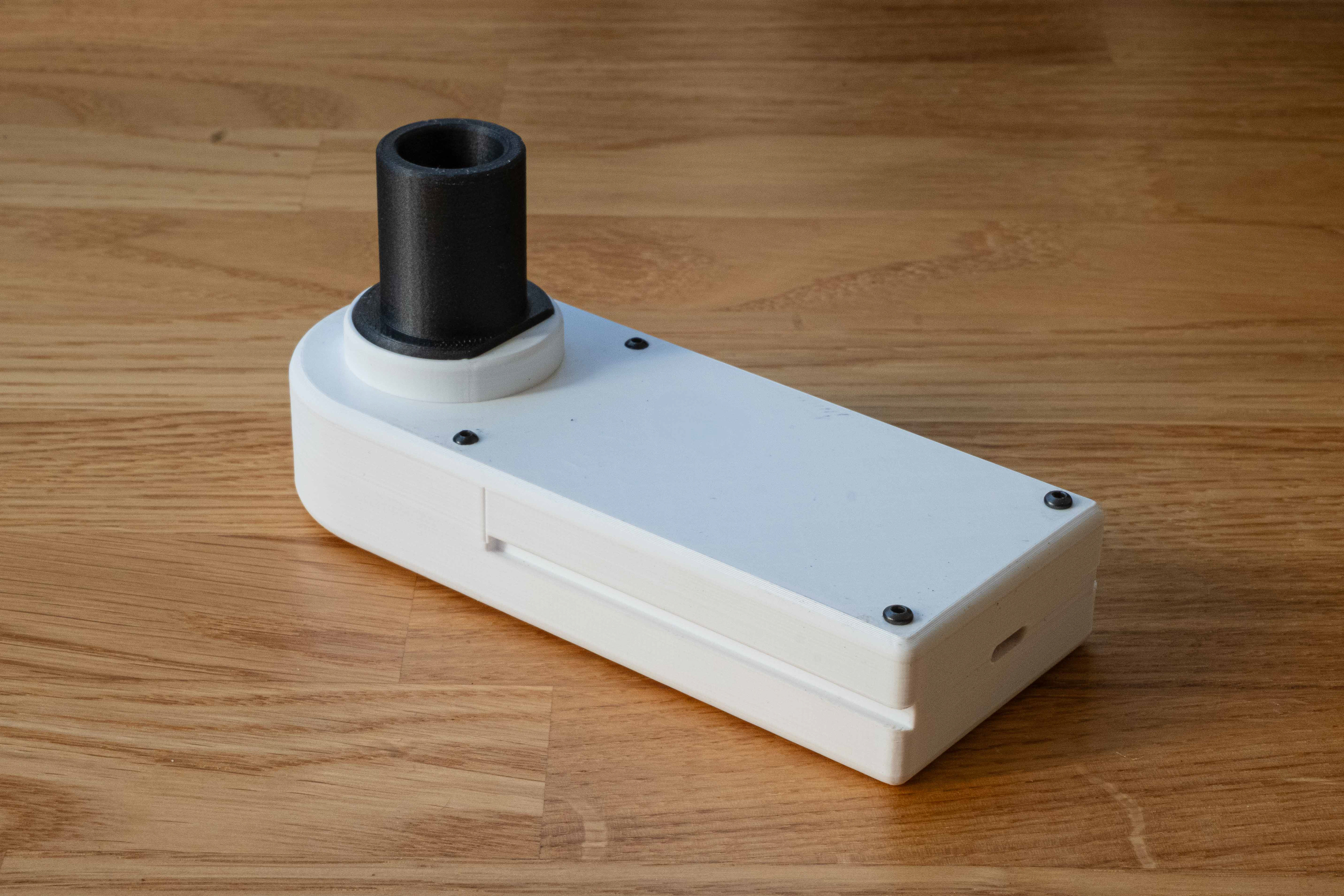

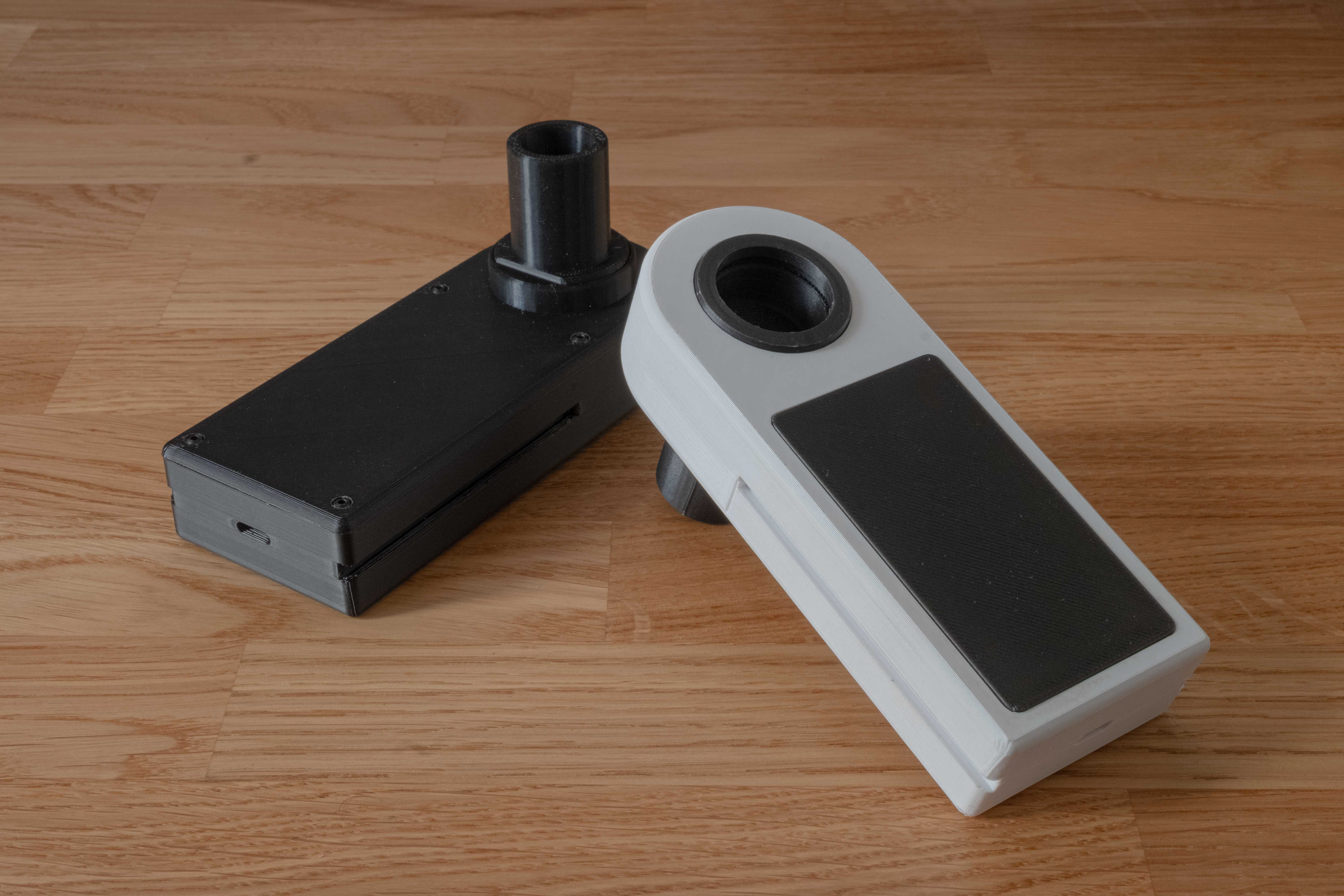

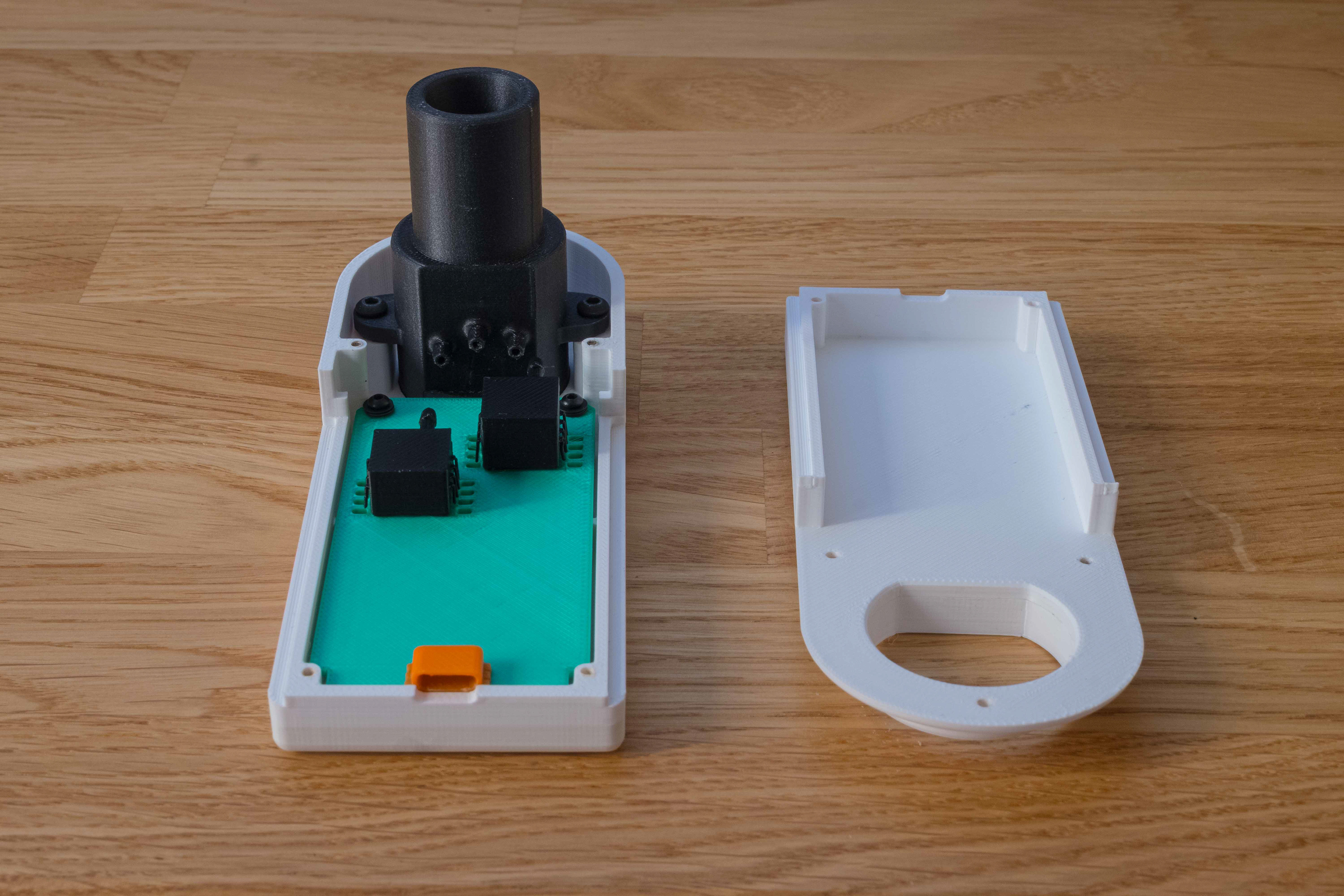

3D printed prototype in various states of assembly. This model was designed to be injection moldable.
